Vega53
Vega53: Born for free flow tolling, traffic monitoring and security applications.
- Applications: Access Control, Free-Flow, Homeland Security, Low Emission Zone
The new generation of AI-based ANPR cameras
Hi-end camera expressly developed to cover, with outstanding performances, all the requirements in free flow tolling, traffic monitoring and security
With full onboard image capture and processing, Vega53 camera provides outstanding performance and flexibility for all ANPR and vehicle identification tasks.
The system is able to cover up to 2 lanes and detects vehicles at high speed
Vega53 camera is a specialized system that meets the demands of one-lane free-flow tolling, traffic monitoring, and security. It can cover up to two lanes (1 lane + overlap for tolling) and detect vehicles travelling at high speed.
Vega53 camera has not only ANPR (ALPR) functionality but also the capability to add vehicle color, brand, and model identification.
Moreover, it can support HD video streaming for surveillance, eliminating the need for additional CCTV cameras.
The camera has a high-power integrated infrared illuminator to support demanding performances such as multiple countries’ plate recognition with optimal reading performances even in high complexity scenarios (reflective, non-reflective, coloured plates with multiple charset support).
Management Systems can be easily achieved with REST API interfacing, multiple configurable protocols, metadata, and image options.
Applications
- Toll collection
- Free Flow
- Traffic monitoring
- Security
- Equipped with Stark, the game-changer software platform for the new generation of Tattile’s ANPR cameras.
- Built-in self-triggering based on image processing
- Easy integration with REST API interface
- Internal buffering and optional storage for off-line operations
Vega53 camera is a specialized system that meets the demands of free flow toll collection, traffic monitoring, and security. It can cover up to two lanes (1 + overlap for tolling) and can detect vehicles travelling at high speed. The system includes standard features such as embedded ANPR (ALPR), monochrome and color vehicle images, optical speed evaluation, and the ability to read both reflective and non-reflective license plates. An extra sensitive sensor mounted on the Vega53 context camera ensures quality images also in low light conditions. The modular system architecture allows an easy customization of the hardware platform according to each application’s complexity.
Vega53 is equipped with Stark, the game-changer software platform for the new generation of Tattile’s  ANPR cameras.
- It is the first software platform secure by design, expressly conceived to resist the harshest cyber attack.
- It is 100% configurable according to the customer’s needs.
- It allows multiple applications to run at the same time.
Vega53 can host on-board different applications in addition to the ANPR, like the BCCM, with extraordinary performance, in terms of the execution time of the various algorithms, Vega53 camera can be equipped with two different OCRs on-board.
VEGA family has been conceived for applications in the tracking and security environment, with a modular and scalable architecture that can fit different requirements without unnecessary extra costs, Vega53 is the new product of the family, born for free flow tolling applications.
| VEGA 53 | |
|---|---|
| SOFTWARE FEATURES AND PERFORMANCE | |
| Lane Detected | Up to 2, depending on layout |
| Working Distance | Up to 35m – 115 ft |
| Detection | >99% |
| Reading | Up to 98% |
| OCR | ANPR (ALPR) engine on board |
| Third party OCR | Optional |
| Classification | Optional (*) |
| Vehicle Color | Optional (*) |
| Vehicle Maker | Optional (*) |
| Vehicle Model | Optional (*) |
| Video Streaming | Color video streaming via standard RTSP protocol (*) |
| AES256 | Yes |
| SHA2 | Yes |
| Image Compression | JPG |
| Streaming Profile | H.264, H.265 |
| CONFIGURATION | |
| Web Server | Installation and configuration with on board Web Application |
| Integration | Support for HTTP REST API |
| Date and Hour | Synchronization via NTP protocol or optional internal GPS |
| Software Update | Upgrading via Web Application and integration protocols |
| DATA TRANSMISSION | |
| FTP | FTP Client mode for remote data transmission |
| Standard protocols | REST and binary protocol, XML, SNMP, NTCIP, Customizable message format |
| Configuration | Configurable events/actions and metadata |
| Wiegand | No |
| Serial Port | Insulated RS485 / RS422 |
| OPERATING MODE | |
| Free Run | Self triggering based on image analysis, even without plates |
| Trigger mode | Image capture and processing triggered by Ethernet or digital signal |
| SYSTEM | |
| ANPR (ALPR) camera | 5 Megapixels Grayscale or 5 Megapixels Color (Color Version) |
| Context Camera | 3 Megapixels Color |
| Illuminator | 12 high power LEDs, infrared @ 850 nm or white |
| Lenses | Fixed lens configuration |
| Operating System | Linux Operating System |
| Custom software | Optional |
| Digital I/O | 2 Optoisolated input – 2 Relay Output – 1 Strobe output |
| IP Protection | IP68 |
| Ethernet | GigaBit Ethernet 10/100/1000 |
| Storage | uSD up to 128 GB |
| Internal SSD | Optional up to 1TB |
| Vandal proof Connector | Yes |
| Antitamper sensor | Yes |
| GPS | Optional |
| LTE | Optional |
| WiFi | Yes |
| TECHNICAL DATA | |
| Operating & Storage Temperature | From -40° to +60° C – From -40° to +140° F |
| Operating & Storage Humidity | Up to 95% non condensing |

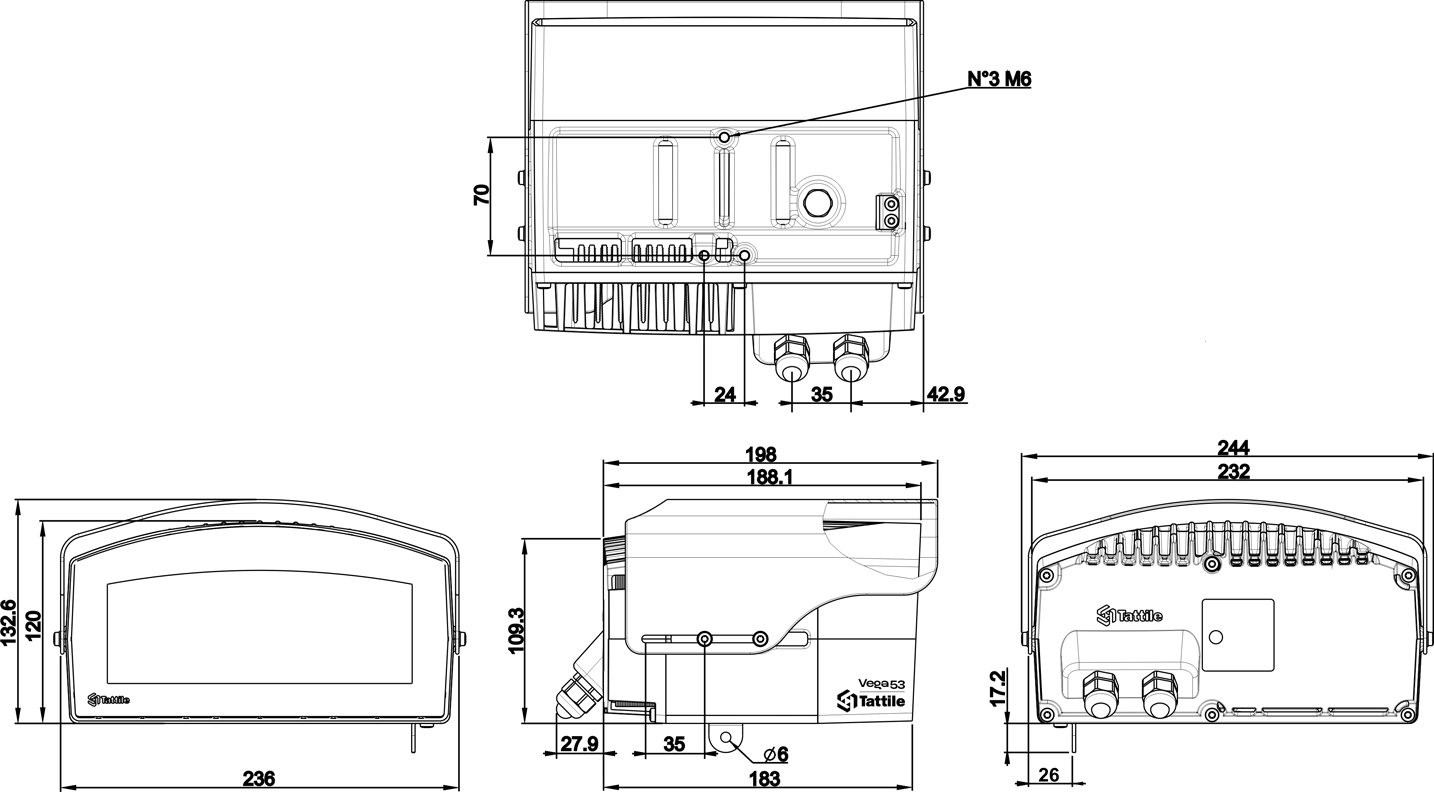

| Dimensions | 225 x 244 x 132 mm – 8.6 x 9.6 x 5.2 in |
| Weight | 3,6 kg – 8 lbs |
| Power supply voltage | 24Vdc |
| Power consumption | 35W |
| Also available in single channel version (OCR) | |
| * Functionality available only in the dual channel version (OCR + context) | |
| F02021-000 | VEGA 53 |
