Tolling+ 55/85 born for MLFF tolling
- Applications: Free-Flow
Two AI accelerators for unseen performances
The Dual AI Accelerator offers a revolutionary solution for challenging multilane free flow (MLFF) tolling applications assuring maximum transit detection performance with an accuracy rate up to 99,9% without using an external trigger device.
The camera can detect and evaluate transits using OCR and context channels. This improves the visibility of objects in different working conditions, as it operates in both the infrared and visible fields. This results in better performance in various lighting conditions and for complex objects like license plates that are dirty or damaged.
It ensures real-time and reliable detection even in high-traffic scenarios, reducing congestion and enabling seamless toll collection.
Tolling+ is equipped with new high-quality sensor (up to 8Mpx on the OCR channel), providing better image quality.
Application
- Free-Flow tolling
Tolling+ is equipped with new high-quality sensor with a resolution of up to 8 megapixels on the OCR channel. This technological advancement enhances image quality and extends its coverage to two lanes with overlap, in tolling applications, ensuring comprehensive and accurate data capture. The high-quality sensor is a foundation for Tolling+’s ability to operate seamlessly in diverse tolling environments.
Dedicated hardware integration for AI algorithms is a groundbreaking development for Tolling+. This feature gives the camera the ability to achieve unmatched levels of performance and accuracy. By utilizing the processing power of specialized AI hardware, Tolling+ has set a new standard for toll collection efficiency. This ensures fast and accurate identification of vehicles, making toll collection a seamless experience.
Stark is a secure-by-design software architecture that is fully compatible with tolling operations. It has been specifically designed with security in mind, offering a modular and fully customizable platform that includes a multilingual, super user-friendly web interface. This architecture not only enhances the security of tolling operations but also provides flexibility and ease of use for operators.
One of Tolling+’s standout features is its ability to detect vehicles traveling at speeds of up to 320 km/h (198 mph). This level of versatility positions Tolling+ as a reliable solution for tolling applications on high-speed roadways, ensuring accurate and timely toll collection without compromising on detection accuracy (>99.5%).
Tolling+ is designed for interoperability. Its REST API interface facilitates easy integration and connectivity with external devices such as laser scanners, radar systems, loops, RFID antennas, and vehicle axle information. This not only streamlines the tolling process but also opens avenues for the incorporation of additional technologies to enhance overall system performance.
| TOLLING+ | |
|---|---|
| SOFTWARE FEATURES AND PERFORMANCE | |
| Software platform | Stark |
| AI hw accelerator | 2 hardware accelerators |
| Lane Detected | 2 lanes with overlap |
| Working Distance | Up to 40m – 115 ft |
| Detection | Up to 99.9% |
| Reading | Up to 99.5% |
| OCR | Up to 3 ANPR (ALPR) engines on board |
| Third party OCR | Optional (*) |
| Classification | Optional (*) |
| Vehicle Color | Optional (*) |
| Vehicle Maker | Optional (*) |
| Vehicle Model | Optional (*) |
| Video Streaming | Color video streaming via standard RTSP protocol (*) |
| AES256 | Yes |
| SHA2 | Yes |
| Image Compression | JPG |
| Streaming Profile | H.264, H.265 |
| CONFIGURATION | |
| Web Server | Installation and configuration with on board Web Application |
| Integration | Support for HTTP REST API |
| Date and Hour | Synchronization via NTP protocol or optional GPS |
| Software Update | Upgrading via Web Application and integration protocols |
| DATA TRANSMISSION | |
| Output Action Types | HTTP, HTTPS, FTP, SFTP, TCP RAW, Serial Communication, Local Storage |
| Message formats | Fully customizable message formats including JSON, XML, custom string |
| Configuration | Configurable events/actions and metadata |
| Serial Port | Yes, RS485 full duplex |
| Digital output event | Yes |
| FTP Server | Yes, access to storage partition |
| OPERATING MODE | |
| Autotrigger | Self-triggering based on AI image analysis on multiple lanes, even without plates |
| Trigger mode | Image capture and processing triggered by Ethernet or digital signal |
| SYSTEM | |
| ANPR (ALPR) camera | 8 Megapixels Grayscale |
| Context Camera | 5 Megapixels Color |
| Illuminator | 12 high power LEDs, infrared @ 850 nm |
| Lenses | Fixed lens configuration |
| Operating System | Linux Operating System |
| Custom software | Optional, with Linux container |
| Digital I/O | 1 Optoisolated input – 1 Relay Output – 2 Strobe outputs |
| IP Protection | IP68 |
| Ethernet | GigaBit Ethernet 10/100/1000 |
| Storage | uSD up to 128 GB |
| Internal SSD | Optional up to 1TB |
| GPS | Optional |
| LTE | Optional |
| WiFi | Yes |
| PSE | Optional |
| TECHNICAL DATA | |
| Operating & Storage Temperature | From -40° to +60° C – From -40° to +140° F |
| Operating & Storage Humidity | Up to 95% non-condensing |

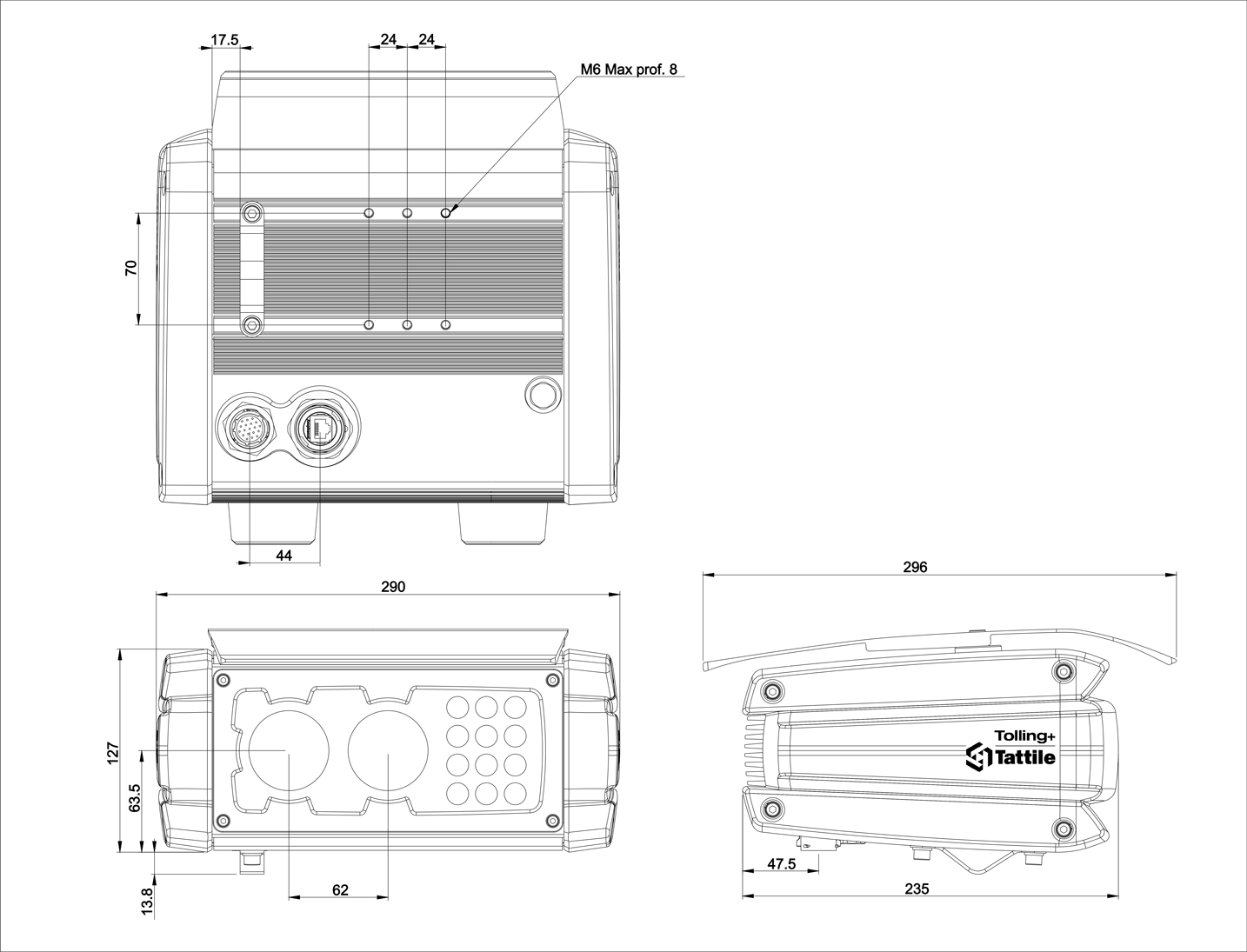

| Dimensions | 290 x 127 x 235 mm – 11.4 x 5.0 x 9.3 in (excluding antenna and connectors) |
| Weight | 6,5 kg – 14.3lbs |
| Power supply voltage | 24 Vdc |
| Power consumption (typical) | 40W (standard config), 50W (full config) |
| Power consumption (maximum) | 82W |
| Also available in single channel version (OCR) | |
| * Functionality available only in the dual channel version (OCR + context) | |
| F02332-000 | Tolling+ | Tolling+ 5+5 mpx |
| F02333-000 | Tolling+ | Tolling+ 8+5 mpx |
In order to update the firmware, please open a ticket on the Tattile Academy platform, selecting “FW upgrade” in the request type field.
